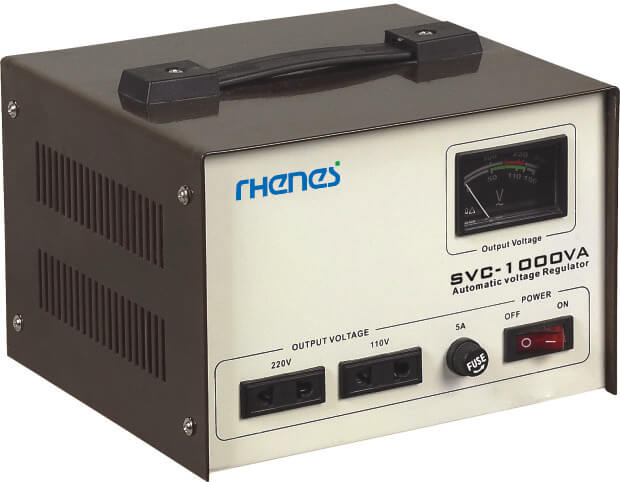

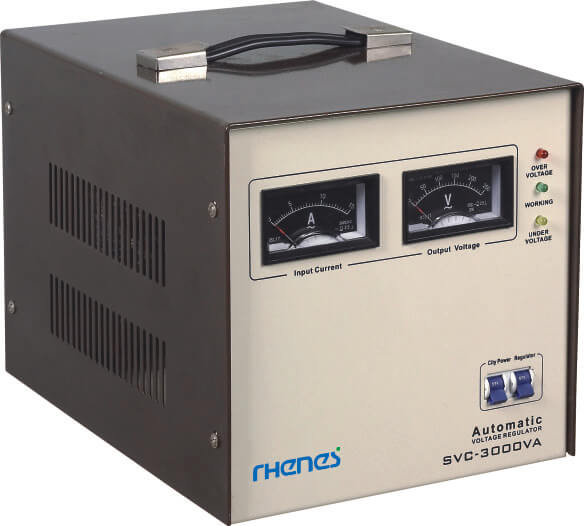

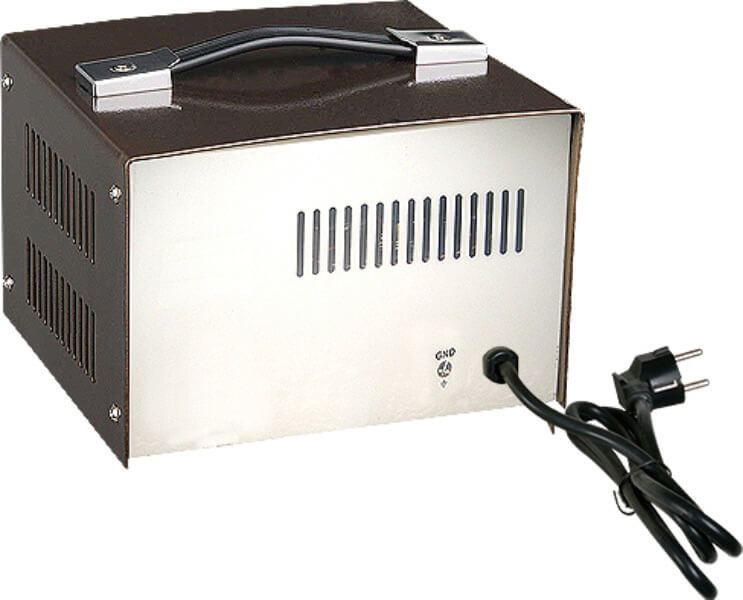

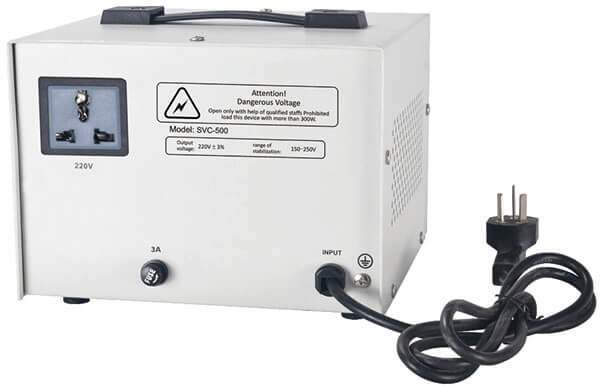

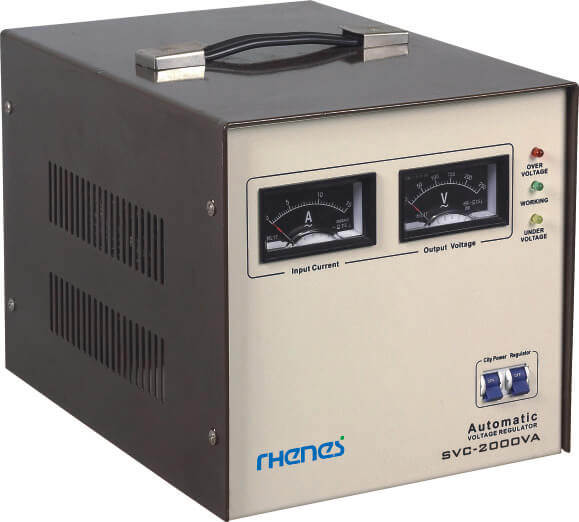

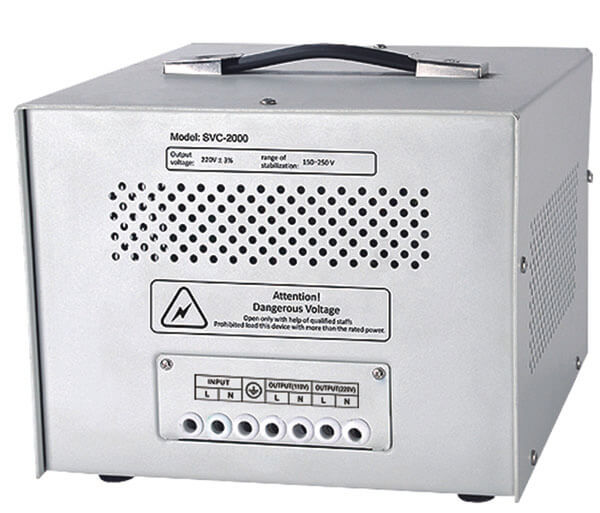

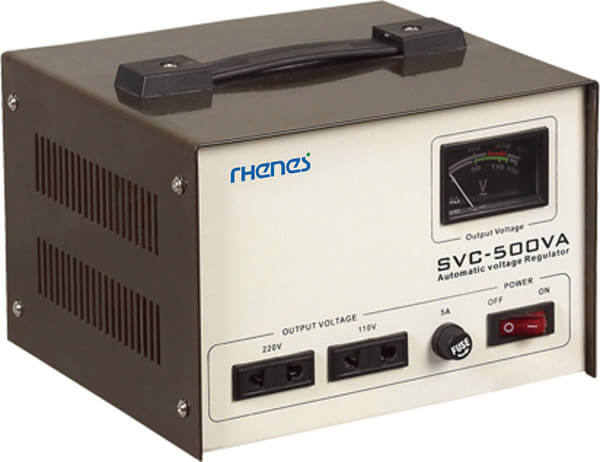

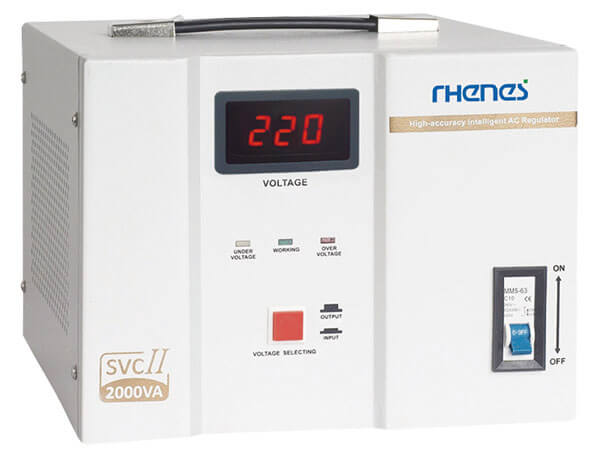

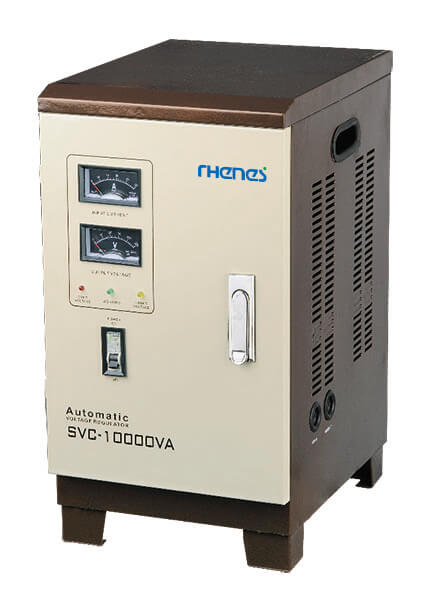

SVC Series

■ Over voltage & Under voltage protection
■ Wide input voltage range: 150~250VAC/80~130VAC
■ Short circuit & Overload protection
■ Short delay & Long delay
■ Over temperature protection
■ High precision: ±3%

Product Information

Specification 500VA 1000VA 1500VA 2000VA 3000VA 5000VA
Input Phase Single phase
Voltage AC 150V - 250V/80V - 130V (Optional)
Frequency 50Hz/60Hz
Output Voltage 220V/230V/240V±3% or 110V/120V/130V±3% (Optional)
Capacity 400W 800W 1200W 1600W 2400W 4000W
Frequency 50Hz/60Hz
Protection Low voltage AC 184V±4V
Over voltage AC 246V±4V
Time Delay 3 - 6sec/3 - 6min Selectable
Overload/short circuit Fuse / MCB
Packaging Pcs per Carton 4 1
Shipping Wt.(Kg) 16.6 21.35 23.15 7.9 11.45 20.8
Packing dimensions(mm) 245*340*425 495*285*390 355*295*240 365*275*280 540*325*270
Efficiency AC-AC 98%
Acoustic Noise level ≤50dB
Environment Temperature -5°C to 40°C
Humidity 20% to 90%
QTY (pcs) 20FT 3200 2100 1120 1120 600

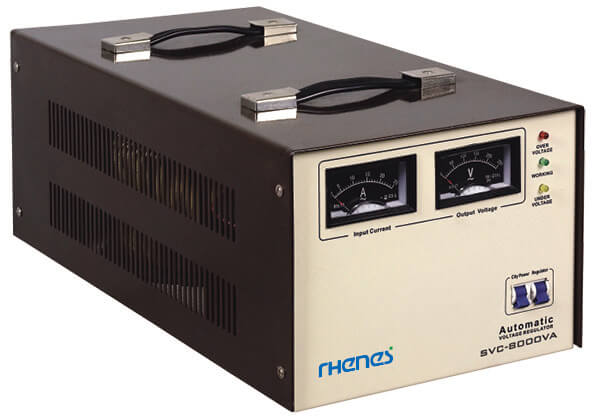

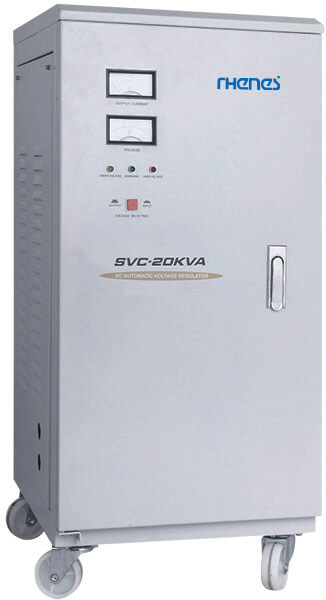

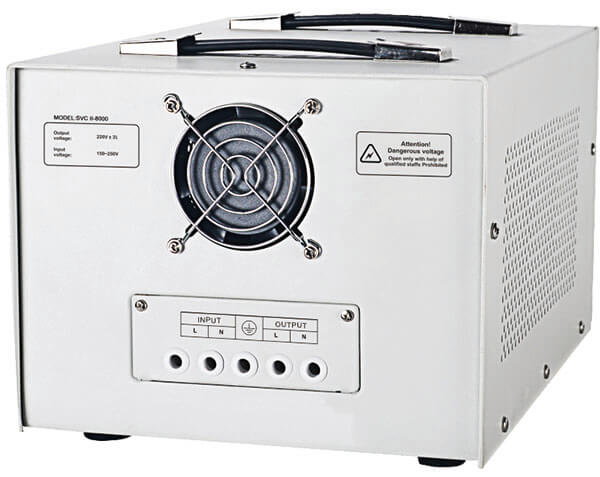

Specification 8KVA 10KVA 10KVA (Vertical) 15KVA 20KVA 30KVA
Input Phase Single phase
Voltage AC 150V - 250V/80V - 130V (Optional)
Frequency 50Hz/60Hz
Output Voltage 220V/230V/240V±3% or 110V/120V/130V±3% (Optional)
Capacity 6400W 8000W 8000W 12000W 16000W 24000W
Frequency 50Hz/60Hz
Protection Low voltage AC 184V±4V
Over voltage AC 246V±4V
Time Delay 3 - 7sec/3 - 7min Selectable
Overload/short circuit MCB
Packaging Pcs per Carton 1
Shipping Wt.(Kg) 27.65 30.5 35 51.3 61.2 80.2
Packing dimensions(mm) 610*360*305 370*330*580 398*415*705 395*430*815 530*440*955
Efficiency AC-AC 98%
Acoustic Noise level ≤50dB
Environment Temperature -5°C to 40°C
Humidity 20% to 90%
QTY (pcs) 20FT 420 420 400 245 210 125
